Product Specifications
| Working distance | 0.1m-2.5m @90% reflectance |
| LED Operating Wavelength | 940nm |
| Dimensions | 52*26*26.6 mm |
| Supported Systems | Linux Ubuntu14.04/16.04,Windows X86/X64 |
| Accuracy | ±1.5cm @10cm-50cm；≤1.5% @50cm-2.5m |
| Output interface | USB 2.0 |
| RGB | FOV | 110°(H)*59°(V) |
| Resolution | 1280*720 | |
| Frame Rate | 10fps | |
| Depth | FOV | 120°(H)*56°(V) |
| Resolution | 224*109 | |
| Frame Rate | 10fps@224*109 |
Product Applications

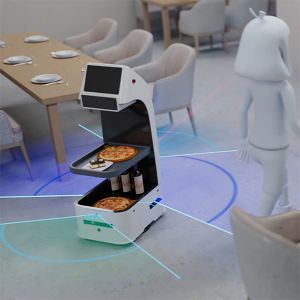

Robot Obstacle Avoidance
Product Features
Omni-Directional Visual Perception Capability
Uses a wide-angle design to achieve precise registration, fusion of RGB and 3D point cloud data.
Provides an embedded depth perception algorithm SDK, supporting UVC protocol for driver-free plug-and-play.
High Safety and Environmental Adaptability
Complies with Laser Class I safety certification, ensuring safe usage.
Supports IP65 dust and water resistance, adapting to diverse environments.
